API 6-5/8" Drill Pipe of Petroleum Equipment drilling tools
Model No.: | API 6-5/8" Drill Pipe |
Production Capacity: | 1000 set per month |
Delivery Date: | 30 days after received advance. |
Standard: | API 5D |
Machine Type: | Drilling Equipment |
Processing Type: | Forging |
Marking: | According to standard or ac... |
Shipping: | 30 days |
Means of Transport: | Ocean,Land,Air |
Packing: | EXPORT PACKAGES |
Size: | 2-3/8"-6-5/8" |
Steel Grade: | G105, S135 |
Material: | Carbon Steel |
Coating: | Black painting / Vanish painting |
Supply Ability: | 1000 sets per month |
1. Standard: API 5D
2. Tool joint: 6-5/8FH
3. Processing Type:Forging
4. Steel Grade: G105, S135
5. Delivery time: 30 days after prepayment
API 6-5/8" Drill Pipe of petroleum equipment
1. Quick details:
1. Size: 6-5/8"
2. Standard: API 5D
3. Steel Grade: G105, S135
4. Supply Ability: 1000 sets per month
5. Place of Origin: China
6. Machine Type: Drilling Equipment
7. Material: 4145H
8. Wall thickness: 8.38mm or 9.19mm
9. Processing Type: Forging
10. MOQ: 10 sets
11. Coating: Black painting / Vanish painting / 1PE/ 3PE/ FBE coated
12. Marking: According to standard or according the client's requirement
13. Packing: In bundles or Loose
14. Length: Random length / 5.8m / 6m / 11.8m / 12 or as per customer's requirement
15. Shipping: 15days for stock and 30-60days for new products
16. Main Market: South America / North America / Europe / Middle East / East-south Asia
17.Upset Type:IEU
2.Usage: oil field drilling, water well drilling, blast hole drilling
Drill pipes are steel tubes with threaded ends that are used to connect a drill rigs surface equipment with its drilling equipment, or bottom hole assembly, at the bottom of a well. They are used to transport drilling fluid to drill bits, and to raise, lower and rotate the bottom hole assembly along with the drill bit. Drill pipes must be manufactured to withstand severe internal and external pressure, distortion, bending and vibration. They are reusable and are not considered consumables in the process of exploring for and extracting oil and gas.
3.Technical Parameter:
Nominal Spec. | Drill Pipe body | Tool joint | |||||||||||
Size (in) | W/T (ppf) | Grade | Up- set | O.D. (mm) | Wall (mm) | RSC Type | O.D. (mm) | I.D. (mm) | Bevel Dia. of Shoulder DF(mm) | Pin Tong (mm) | Box Tong (mm) | O.D. of Upset Neck (mm) | Torsion |
2-3/8 | 6.65 | E | EU | 60.32 | 7.11 | NC26 | 85.7 | 45.45 | 82.95 | 177.8 | 203.2 | 65.09 | 1.1 |
X | 85.7 | 45.45 | 82.95 | 177.8 | 203.2 | 65.09 | 0.87 | ||||||
G | 85.7 | 45.45 | 82.95 | 177.8 | 203.2 | 65.09 | 0.79 | ||||||
2-7/8 | 10.4 | E | EU | 73.02 | 9.19 | NC31 | 104.8 | 53.98 | 100.41 | 177.8 | 228.6 | 80.96 | 1.03 |
X | 104.8 | 50.8 | 100.41 | 177.8 | 228.6 | 80.96 | 0.9 | ||||||
G | 111.1 | 50.8 | 100.41 | 177.8 | 228.6 | 80.96 | 0.82 | ||||||
S | 41.28 | 100.41 | 177.8 | 228.6 | 80.96 | 0.82 | |||||||
3-1/2 | 13.3 | E | EU | 88.9 | 9.35 | NC38 | 120.7 | 68.26 | 116.28 | 203.2 | 266.7 | 98.43 | 0.98 |
X | 127 | 65.09 | 116.28 | 203.2 | 266.7 | 98.43 | 0.87 | ||||||
G | 127 | 61.91 | 116.28 | 203.2 | 266.7 | 98.43 | 0.86 | ||||||
S | 127 | 53.98 | 116.28 | 203.2 | 266.7 | 98.43 | 0.8 | ||||||
E | 11.4 | 127 | 65.09 | 116.28 | 203.2 | 266.7 | 98.43 | 0.97 | |||||
X | 127 | 61.91 | 116.28 | 203.2 | 266.7 | 98.43 | 0.83 | ||||||
G | 127 | 53.98 | 116.28 | 203.2 | 266.7 | 98.43 | 0.9 | ||||||
15.5 | S | NC40 | 139.7 | 57.15 | 127.4 | 177.8 | 254 | 98.43 | 0.87 | ||||
4 | 14 | E | IU | 101.6 | 8.38 | NC40 | 133.4 | 71.44 | 127.4 | 177.8 | 254 | 106.36 | 1.01 |
X | 133.4 | 68.26 | 127.4 | 177.8 | 254 | 106.36 | 0.86 | ||||||
G | 139.7 | 61.91 | 127.4 | 177.8 | 254 | 106.36 | 0.93 | ||||||
S | 139.7 | 50.8 | 127.4 | 177.8 | 254 | 106.36 | 0.87 | ||||||
E | EU | NC46 | 152.4 | 82.55 | 145.26 | 177.8 | 254 | 114.3 | 1.43 | ||||
X | 152.4 | 82.55 | 145.26 | 177.8 | 254 | 114.3 | 1.13 | ||||||
G | 152.4 | 82.55 | 145.26 | 177.8 | 254 | 114.3 | 1.02 | ||||||
S | 152.4 | 76.2 | 145.26 | 177.8 | 254 | 114.3 | 0.94 | ||||||
4.5 | 16.6 | E | IEU | 114.3 | 8.56 | NC46 | 158.8 | 82.55 | 145.26 | 177.8 | 254 | 119.06 | 1.09 |
X | 158.8 | 72.6 | 145.26 | 177.8 | 254 | 119.06 | 1.01 | ||||||
G | 158.8 | 76.2 | 145.26 | 177.8 | 254 | 119.06 | 0.91 | ||||||
S | 158.8 | 69.85 | 145.26 | 177.8 | 254 | 119.06 | 0.81 | ||||||
20 | E | 10.92 | 158.8 | 76.2 | 145.3 | 177.8 | 254 | 119.07 | 1.07 | ||||
X | 158.8 | 69.85 | 145.3 | 177.8 | 254 | 119.07 | 0.96 | ||||||
G | 158.8 | 63.5 | 145.3 | 177.8 | 254 | 119.07 | 0.96 | ||||||
S | 158.8 | 57.15 | 145.3 | 177.8 | 254 | 119.07 | 0.81 | ||||||
16.6 | E | EU | 8.56 | NC50 | 168.3 | 95.25 | 154 | 177.8 | 254 | 127 | 1.23 | ||
X | 168.3 | 95.25 | 154 | 177.8 | 254 | 127 | 0.97 | ||||||
G | 168.3 | 95.25 | 154 | 177.8 | 254 | 127 | 0.88 | ||||||
S | 168.3 | 88.9 | 154 | 177.8 | 254 | 127 | 0.81 | ||||||
20 | E | 10.92 | 168.3 | 92.08 | 154 | 177.8 | 254 | 127 | 1.07 | ||||
X | 168.3 | 88.9 | 154 | 177.8 | 254 | 127 | 0.96 | ||||||
G | 168.3 | 88.9 | 154 | 177.8 | 254 | 127 | 0.96 | ||||||
S | 168.3 | 76.2 | 154 | 177.8 | 254 | 127 | 0.81 | ||||||
5 | 19.5 | E | IEU | 127 | 9.19 | NC50 | 168.3 | 95.25 | 154 | 177.8 | 254 | 130.18 | 1.23 |
X | 168.3 | 88.9 | 154 | 177.8 | 254 | 130.18 | 0.97 | ||||||
G | 168.3 | 82.5 | 154 | 177.8 | 254 | 130.18 | 0.88 | ||||||
S | 168.3 | 69.85 | 154 | 177.8 | 254 | 130.18 | 0.81 | ||||||
25.6 | E | 12.7 | 168.3 | 88.9 | 154 | 177.8 | 254 | 130.18 | 1.02 | ||||
X | 168.3 | 76.2 | 154 | 177.8 | 254 | 130.18 | 0.96 | ||||||
G | 168.3 | 69.85 | 154 | 177.8 | 254 | 130.18 | 0.86 | ||||||
S | 0.87 | ||||||||||||
19.5 | E | 9.19 | 5-1/2FH | 177.8 | 95.25 | 170.7 | 203.2 | 254 | 130.18 | 1.53 | |||
X | 177.8 | 95.25 | 170.7 | 203.2 | 254 | 130.18 | 1.21 | ||||||
G | 177.8 | 95.25 | 170.7 | 203.2 | 254 | 130.18 | 1.09 | ||||||
S | 184.2 | 88.9 | 170.7 | 203.2 | 254 | 130.18 | 0.98 | ||||||
25.6 | E | 12.7 | 177.8 | 88.9 | 170.7 | 203.2 | 254 | 130.18 | 1.21 | ||||
X | 177.8 | 88.9 | 170.7 | 203.2 | 254 | 130.18 | 0.95 | ||||||
G | 184.2 | 88.9 | 170.7 | 203.2 | 254 | 130.18 | 0.99 | ||||||
S | 184.2 | 82.55 | 170.7 | 203.2 | 254 | 130.18 | 0.83 | ||||||
5-1/2 | 21.9 | E | IEU | 139.7 | 9.17 | 177.8 | 101.6 | 170.7 | 203.2 | 254 | 144.46 | 1.11 | |
X | 177.8 | 95.25 | 170.7 | 203.2 | 254 | 144.46 | 0.98 | ||||||
G | 184.2 | 88.9 | 170.7 | 203.2 | 254 | 144.46 | 1.02 | ||||||
S | 190.5 | 76.2 | 180.2 | 203.2 | 254 | 144.46 | 0.96 | ||||||
24.7 | E | 10.54 | 177.8 | 101.6 | 170.7 | 203.2 | 254 | 144.46 | 0.99 | ||||
X | 184.2 | 88.9 | 170.7 | 203.2 | 254 | 144.46 | 1.01 | ||||||
G | 184.2 | 88.9 | 170.7 | 203.2 | 254 | 144.46 | 0.92 | ||||||
S | 190.5 | 76.2 | 180.2 | 203.2 | 254 | 144.46 | 0.86 | ||||||
6-5/8 | 25.2 | E | IEU | 168.3 | 8.38 | 6-5/8FH | 203.2 | 127 | 195.7 | 203.2 | 279.4 | 176.21 | 1.04 |
X | 203.2 | 127 | 195.7 | 203.2 | 279.4 | 176.21 | 0.82 | ||||||
G | 209.6 | 120.65 | 195.7 | 203.2 | 279.4 | 176.21 | 0.87 | ||||||
S | 215.9 | 107.95 | 195.7 | 203.2 | 279.4 | 176.21 | 0.86 | ||||||
27.7 | E | 9.19 | 203.2 | 127 | 195.7 | 203.2 | 279.4 | 176.21 | 0.96 | ||||
X | 209.6 | 120.65 | 195.7 | 203.2 | 279.4 | 176.21 | 0.89 | ||||||
G | 209.6 | 120.65 | 195.7 | 203.2 | 279.4 | 176.21 | 0.81 | ||||||
S | 215.9 | 107.95 | 195.7 | 203.2 | 279.4 | 176.21 | 0.81 |

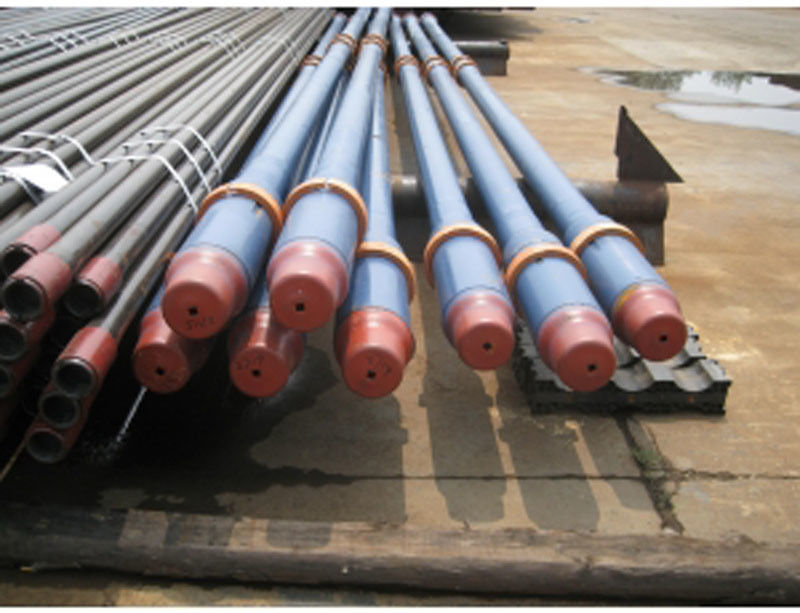

3. Photos of Drill Pipe:
4. Drill Pipe Feature:
A. High precision in size and shape
B. Good low temperature toughness
C. Excellent comprehensive mechanical properties
D. High connection strength and sealability
E. Large inside diameter of tool joint
F. High torque resistance
G. High fatigue strength and long fatigue life
5. Workshop & Facilities:
6. Drill pipe Technical Flow:
